9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18
27 - Engine 6081HH012-RG28898 (200000 - )( Двигатель HHRG )
4601, 4613 CYLINDER BLOCK FITTINGS( БЛОК ЦИЛИНДРОВ ШТУЦЕРЫ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | R43409 | Plug | 2 | OD 43MM | |||
| 2 | R515224 | Stud | 4 | ||||
| 3 | R503983 | Dipstick Tube | 1 | LGTH= 155MM | |||
| 4 | AT13740 | Drain Valve | 1 | 1/4"-18NPT | |||
| 5 | RE57836 | Pipe Plug | AR | 1/2"-14NPT, WITH PRE-APPLIED SEALANT | |||
| 6 | R39741 | Drain Plug | 1 | NO ENGINE HEATER | |||
| 7 | U13639 | O-Ring | 1 | ||||
| 8 | RE524764 | Threaded Nipple | 1 | 256768 | - | XXXXXX | |
| 9 | R42340 | Bushing | 2 | ||||
| 10 | R1612R | Dowel Pin | 2 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 11 | F1743R | Dowel Pin | 2 | ||||
| 12 | RE71255 | Pipe Plug | 4 | 1/8"-27NPT | |||
| 13 | R43621 | Orifice | 6 | PISTON COOLING JET | |||
| 14 | T35390 | Plug | 1 | OIL FILL HOLE | |||
| 15 | R500642 | Bushing | 2 | ||||
| 16 | R121929 | Plug | 1 | TIMING/TURN TOOL HOLE | |||
| 17 | R519287 | Cap Screw | 14 | (SUB FOR R122364) | |||
| 18 | R120953 | Bearing Cap | 6 | MAIN | |||
| R120954 | Bearing Cap | 1 | THRUST | ||||
| 19 | R82007 | Plug | 1 | OD 70MM | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 20 | R87561 | Bushing | 4 | CAMSHAFT | |||
| 21 | R61288 | Dowel Pin | 1 | ||||
| 22 | 15H686 | Pipe Plug | 1 | 1" | |||
| .. | 37H44 | Screw | 2 | 0.154" X 3/8" (NOT SHOWN) | |||
| .. | R501255 | Plug | 1 | (NOT SHOWN) | |||
| .. | 15H690 | Pipe Plug | AR | 3/4" (NOT SHOWN) |
4601, 4613 CAMSHAFT( Распредвал)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R87561 | Bushing | 4 | |||
| 2 | R110126 | Follower | 12 | |||
| 3 | RE57054 | Camshaft | 1 | (MARKED R120872) | ||
| 4 | 26H91 | Shaft Key | 1 | 3/16" X 1-1/4" | ||
| 5 | R504811 | Washer | 2 | (SUB FOR R104656) | ||
| 6 | R104589 | Gear | 1 | |||
| 7 | R518212 | Gear | 1 | (SUB FOR R112053) |
9902 ENGINE OVERHAUL KIT( КАПИТАЛЬНЫЙ РЕМОНТ ДВИГАТЕЛЯ КОМПЛЕКТ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | RE521155 | Engine Overhaul Kit | 1 | (PISTON MARKED RE70689) | |||
| RE521155 | Engine Overhaul Kit | 1 | - | 233485 | |||
| RE508157 | Engine Overhaul Kit | 1 | 233486 | - |
4806 Connecting Rods and Pistons( Шатуны и поршни)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | RE62791 | Piston-Liner Kit | 6 | - | 233485 | ||
| RE508156 | Piston-Liner Kit | 6 | 233486 | - | |||
| 2 | RE503528 | Piston Ring | 6 | ||||
| 3 | E1343FN | Snap Ring | 12 | ||||
| 4 | R57771 | Piston Pin | 6 | ||||
| 5 | RE535555 | Connecting Rod | 6 | MARKED R526592; ORDER DZ100118 | |||
| SE501767 | Connecting Rod Reman | 6 | REMAN FOR RE535555 | ||||
| DZ100118 | Connecting Rod | 1 | MARKED DZ100422 | ||||
| 6 | R71077 | Bushing | 1 | (ORDER R74008) | |||
| R74008 | Bushing | 1 | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 7 | R542878 | Cap Screw | 2 | SUB FOR R501035 | |||
| 8 | R525767 | Bearing | 12 |
4701 CRANKSHAFT, BEARINGS( ПОДШИПНИКИ КОЛЕНЧАТОГО ВАЛА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE530437 | Crankshaft | 1 | ORDER RE534314 | ||
| RE534314 | Crankshaft | 1 | ALSO ORDER RE529775 | |||
| SE501662 | Crankshaft Reman | 1 | REMAN FOR RE534314 | |||
| 2 | R41934 | Dowel Pin | 1 | |||
| 3 | 34M7089 | Spring Pin | 1 | |||
| 4 | R120752 | Key | 1 | |||
| 5 | R104587 | Gear | 1 | |||
| 6 | R32617 | Retainer | 1 | |||
| 7 | RE529320 | Thrust Bearing | 1 | SUB FOR RE504198 OR RE528404; STD | ||
| 8 | RE529319 | Bearing | 6 | STD (SUB FOR RE528403) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| RE504196 | Bearing | AR | 0.292 MM (.011") US | |||
| RE504197 | Bearing | AR | 0.552 MM (.022") US | |||
| 9 | RE504198 | Thrust Bearing | 1 | STD (SUB RE529320) | ||
| RE504199 | Thrust Bearing | AR | 0.292 MM (.011") US | |||
| RE504200 | Thrust Bearing | AR | 0.552 MM (.022") US |
1501, 1519 FLYWHEEL( Маховик)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE502510 | Flywheel | 1 | SUB FOR RE57733; MARKED R501414 | ||
| 2 | R28811 | Ring Gear | 1 | z = 129 | ||
| 3 | T21242 | Washer | 6 | |||
| 4 | R79850 | Cap Screw | 6 | 12.700 X 50.800 mm SUB FOR R93238 |
1301, 1316 CRANKSHAFT DAMPER PULLEY AND FRONT SEAL( ДЕМПФЕР ШКИВА КОЛЕНВАЛА И ПЕРЕДНЕГО САЛЬНИКА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R523306 | Key | 1 | |||
| 2 | RE500917 | Torsional Damper | 1 | |||
| 3 | RE57604 | Torsional Damper | 1 | |||
| 4 | R26333 | Washer | 1 | |||
| 5 | R79846 | Cap Screw | 1 | |||
| 6 | R517166 | Pulley | 1 | |||
| 7 | R517167 | Pulley | 1 | |||
| 8 | 19H2633 | Cap Screw | 1 | 3/8" X 1-1/2" |
1496, 1499 FLYWHEEL HOUSING( МАХОВИК ЖИЛЬЯ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H2117 | Cap Screw | 6 | 5/16" X 1-1/8" | ||
| 2 | T27860 | Washer | 6 | |||
| 3 | R125027 | Housing | 1 | |||
| 4 | RE520036 | Seal | 1 | |||
| 5 | R522768 | Gasket | 1 | (SUB FOR R520504) | ||
| 6 | R121929 | Plug | 1 |
7703 TIMING GEAR COVER( ПЕРЕДНЯЯ КРЫШКА ШЕСТЕРНИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H3693 | Screw | 1 | 3/8" X 1-1/4" | ||
| 2 | RE517059 | Washer | 1 | |||
| 3 | R115129 | Cap Screw | 3 | |||
| 4 | R98527 | Filter | 1 | |||
| 5 | R502083 | Cover | 1 | |||
| 6 | RE517370 | Fitting | 1 | SUB FOR RE501938 | ||
| 7 | 51M7044 | O-Ring | 1 | 17.300 X 2.200 mm | ||
| 8 | R104859 | Screw | 3 | |||
| 9 | R504811 | Washer | 1 | |||
| 10 | RE543639 | Seal Kit | 1 | USE WITH RE530437; SUB FOR RE534261 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| RE542195 | Seal | 1 | USE WITH RE534314; SUB FOR RE529775 | |||
| 11 | F1743R | Dowel Pin | 2 | |||
| 12 | R119384 | Gasket | 1 |
5104 CYLINDER HEAD WITH VALVES( ГОЛОВКА БЛОКА ЦИЛИНДРОВ С КЛАПАНАМИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE519894 | Cylinder Head | 1 | |||
| SE501577 | Cylinder Head Reman | 1 | (REMAN FOR RE519894) | |||
| 2 | T20077 | Retainer | 24 | |||
| 3 | R500098 | Cap | 12 | |||
| 4 | R502187 | Compression Spring | 12 | |||
| 5 | R501640 | Shield | 12 | |||
| 6 | 15H690 | Pipe Plug | 11 | 3/4" | ||
| 7 | R515575 | Plug | 2 | |||
| 8 | R121193 | Valve Seat Insert | 6 | INTAKE, STD | ||
| R93350 | Valve Seat Insert | AR | 0.254 MM (.010") OS, INTAKE | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | R84618 | Intake Valve | 6 | STD | ||
| R93308 | Intake Valve | AR | 0.08 MM (.003") OS | |||
| R93312 | Intake Valve | AR | 0.38 MM (.015") OS | |||
| R93314 | Intake Valve | AR | 0.76 MM (.030") OS | |||
| 10 | R84619 | Exhaust Valve | 6 | STD | ||
| R93311 | Exhaust Valve | AR | 0.08 MM (.003") OS | |||
| R93313 | Exhaust Valve | AR | 0.38 MM (.015") OS | |||
| R93315 | Exhaust Valve | AR | 0.76 MM (.030") OS | |||
| 11 | R119132 | Valve Seat Insert | 6 | EXHAUST, STD | ||
| R93349 | Valve Seat Insert | AR | 0.254 MM (.010") OS, EXHAUST | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 12 | R502911 | Screw | 6 | SPECIAL | ||
| 13 | R502912 | Screw | 5 | SPECIAL | ||
| 14 | R121490 | Cap Screw | 8 | SPECIAL | ||
| 15 | R121491 | Cap Screw | 7 | SPECIAL | ||
| 16 | 19H2367 | Cap Screw | 1 | 5/8" X 3/4" | ||
| 17 | R42340 | Bushing | 2 | |||
| 18 | RE55475 | Engine Cylinder Head Gasket | 1 |
4902 ROCKER ARM ASSEMBLY( БЛОКА КОРОМЫСЕЛ )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE521278 | Kit | 6 | |||
| 2 | U17408 | Ring | 2 | |||
| 3 | R519425 | Washer | 2 | |||
| 4 | RE24045 | Rocker Arm | 1 | (RH) | ||
| 5 | 14H1080 | Nut | 1 | 3/8" | ||
| 6 | R27443 | Set Screw | 1 | |||
| 7 | RE24046 | Rocker Arm | 1 | (LH) | ||
| 8 | 14H1080 | Nut | 1 | 3/8" | ||
| 9 | R27443 | Set Screw | 1 | |||
| 10 | 19H3833 | Screw | 12 | 5/16" X 1-3/4" | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | T20129 | Cap | 12 | |||
| 12 | R85027 | Push Rod | 12 |

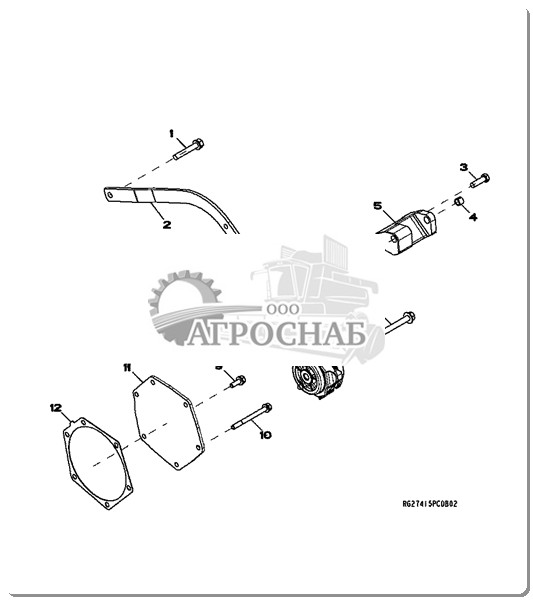

5706 WATER PUMP INLET( ВОДЯНОЙ НАСОС ВПУСКНОЙ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AH89557 | Clip | 1 | |||
| 2 | 24H1303 | Washer | 3 | 13/32" X 11/16" X 0.065" | ||
| 3 | 19H1854 | Cap Screw | 3 | 3/8" X 3-3/4" | ||
| 4 | 24H1136 | Washer | 1 | 11/32" X 11/16" X 0.065" | ||
| 5 | 19H1897 | Cap Screw | 1 | 5/16" X 3-3/4" | ||
| 6 | 19H3411 | Screw | 2 | 3/8" X 1-1/8" | ||
| 7 | RE509328 | Cover | 1 | |||
| 8 | R503425 | Cover | 1 | (ORDER RE509328) | ||
| 9 | AT13740 | Drain Valve | 1 | |||
| 10 | RE54885 | Hose Fitting | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R119383 | Gasket | 1 |

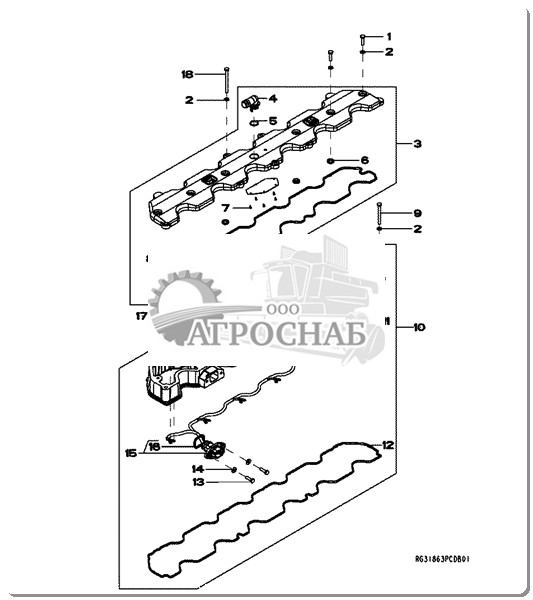

1102 Rocker Arm Cover( Коромысло Нарукавники )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H1914 | Cap Screw | 7 | 1/4" X 1" | ||
| 2 | 24H1286 | Washer | 15 | 9/32" X 1/2" X 1/16" | ||
| 3 | RE505094 | Valve Cover | 1 | |||
| 4 | R120467 | Elbow Fitting | 1 | |||
| 5 | R72328 | O-Ring | 1 | |||
| 6 | R504093 | Seal | 4 | |||
| 7 | 37H26 | Screw | 5 | 0.116" X 1/4" | ||
| 8 | R502598 | Seal | 1 | |||
| 9 | 19H2334 | Cap Screw | 6 | 1/4" X 2-1/2" | ||
| 10 | RE509265 | Housing | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R502695 | Housing | 1 | |||
| 12 | R502719 | Seal | 1 | |||
| 13 | 19H2036 | Cap Screw | 2 | 1/4" X 7/8" | ||
| 14 | 24H1287 | Washer | 2 | 9/32" X 5/8" X 0.065" | ||
| 15 | RE509048 | Wiring Harness | 1 | |||
| 16 | R520373 | Seal | 1 | |||
| 17 | R134920 | Nut | 12 | M4 | ||
| 18 | 19H2151 | Cap Screw | 2 | 1/4" X 3" |
5002 OIL PUMP( МАСЛЯНЫЙ НАСОС)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE519513 | Oil Pump | 1 | (MARKED R518347) (SUB RE533975) | ||
| SE501270 | Oil Pump Reman | 1 | (A) MARKED R518347; REMA N FOR RE519513 OR RE533975 | |||
| RE507076 | Oil Pump | 1 | (MARKED R504028) | |||
| SE500877 | Oil Pump Reman | 1 | (A) (MARKED R504028) (REMAN FOR RE507076) | |||
| 2 | R62943 | Quick Lock Pin | 1 | |||
| 3 | 24M7239 | Washer | 2 | 10.700 X 21 X 2.500 mm | ||
| 4 | 19M9399 | Cap Screw | 3 | M10 X 60 , (USE WITH RE519 513 OR RE533975 , SE501270) | ||
| R104628 | Screw | 3 | (USE WITH RE507076 OR SE500877) | |||
| 5 | R71732 | O-Ring | 1 | |||
| 6 | R529397 | Gear | 1 | SUB FOR R526290 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 7 | 14H826 | Nut | 1 | 1/2" | ||
| 8 | T21242 | Washer | 1 | |||
| 9 | 19H3219 | Cap Screw | 2 | 3/8" X 1-3/8" | ||
| 10 | R57696 | Washer | 4 | |||
| 11 | 19H3759 | Cap Screw | 2 | 3/8" X 1-7/8" | ||
| 12 | R500642 | Bushing | 2 |
OIL COOLER BYPASS(МАСЛООХЛАДИТЕЛЬ ОБХОДА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1A | R109625 | Gasket | 1 | - | XXXXXX | ||
| 1B | R504669 | Seal | 2 | (USE WITH RE509383 OR RE524007) | |||
| 2A | R116233 | Adapter Fitting | 1 | - | XXXXXX | ||
| 2B | RE509383 | Adapter Fitting | 1 | XXXXXX | - | ||
| RE524007 | Adapter Fitting | 1 | (MARKED R520491 ) (SUB FOR R116233 OR RE509383) | ||||
| 3 | 24M7346 | Washer | 2 | 11 X 20 X 2 mm | |||
| 4 | R40236 | Cap Screw | 2 | ||||
| 5 | R126337 | Oil Tube | 1 | (USE WITH R116233 OR RE509383) | |||
| R518376 | Oil Tube | 1 | (USE WITH RE524007) | ||||
| 6 | R524512 | Oil Tube | 1 | (SUB FOR R116718) | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 7 | R71732 | O-Ring | 4 |
ENGINE OIL COOLER(ОХЛАДИТЕЛЬ МОТОРНОГО МАСЛА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | 19H3768 | Screw | 5 | 5/16" X 1-3/8" | |||
| 2 | 24M7055 | Washer | 2 | - | XXXXXX | ||
| 3 | M43325 | Bushing | 1 | - | XXXXXX | ||
| 4 | 19H2852 | Cap Screw | 1 | - | 232463 | ||
| 19H3769 | Screw | 1 | 232464 | - | |||
| 5 | 19H3769 | Screw | 2 | - | 232463 | ||
| 19H3768 | Screw | 2 | 232464 | - | |||
| 6 | R134602 | Cover | 1 | - | 232463 | ||
| R504289 | Cover | 1 | 232464 | - | |||
| 7 | R500055 | Valve | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 8 | R98064 | Spring | 1 | ||||
| 9 | U17409 | O-Ring | 1 | ||||
| 10 | R121163 | Drain Plug | 1 | - | 232463 | ||
| R504670 | Retainer | 1 | 232464 | - | |||
| 11 | R47153 | O-Ring | 4 | - | 232463 | ||
| R518804 | Packing | 4 | 232464 | - | |||
| 12 | R51053 | Oil Tube | 2 | - | 232463 | ||
| RE515781 | Oil Tube | 2 | 232464 | - | |||
| 13 | R127297 | Adapter Fitting | 1 | - | 232463 | ||
| R504667 | Adapter Fitting | 1 | 232464 | - | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 14A | R520547 | Gasket | 1 | - | 232463 | ||
| 14B | R504669 | Seal | 2 | 232464 | - | ||
| 15 | 19H3411 | Screw | 2 | - | 232463 | ||
| 19H3771 | Screw | 2 | 232464 | - | |||
| 16 | 24M7096 | Washer | 2 | 10.500 X 18 X 1.600 mm | |||
| 17 | AR58952 | Gasket | 1 | ||||
| 18 | AR55394 | Oil Cooler | 1 | ||||
| 19 | R132396 | Gasket | 1 | - | 232463 | ||
| R504668 | Seal | 1 | 232464 | - |

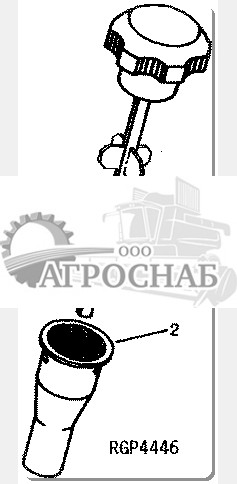

ENGINE OIL DIPSTICK(МОТОРНОЕ МАСЛО ЩУП)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE500218 | Dipstick | 1 | |||
| 2 | R503983 | Dipstick Tube | 1 |
OIL FILTER(МАСЛЯНЫЙ ФИЛЬТР)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H2633 | Cap Screw | 4 | 3/8" X 1-1/2" | ||
| 2 | 24H1682 | Washer | 4 | 13/32" X 7/8" X 0.120" | ||
| 3 | RE515398 | Cap | 1 | |||
| 4 | RE509672 | Filter Element | 1 | |||
| 5 | R504628 | Pressure Relief Valve | 1 | |||
| 6A | R515144 | Compression Spring | 1 | (SUB R517482) NLA | ||
| 6B | R517482 | Compression Spring | 1 | |||
| 7A | RE509223 | Plug | 1 | (SUB RE519728 ) (INCLUDES U17409) NLA | ||
| 7B | RE519728 | Fitting Plug | 1 | (INCLUDES U17409) | ||
| 8 | U17409 | O-Ring | 1 | 26.594 X 2.946 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | RE519118 | Drain Valve | 1 | |||
| 10 | RE505743 | Filter | 1 | |||
| 11 | RE516171 | Seal Kit | 1 | |||
| 12 | RE58294 | Adapter Fitting | 1 | |||
| 13 | RE506171 | Adapter Kit | 1 | |||
| 14 | 19H2922 | Screw | 3 | 3/8" X 1-1/4" |
WATER PUMP(ВОДЯНОЙ НАСОС)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AT13740 | Drain Valve | 1 | |||
| 2 | RE509328 | Cover | 1 | (MARKED R503425) | ||
| 3 | RE39134 | Seal | 1 | |||
| 4 | ...... | O-Ring | 1 | (ORDER RE509463) NLA | ||
| ...... | O-Ring | 1 | (ORDER RE509463) NLA | |||
| 5 | R121316 | Ring | 1 | (RETAINING) | ||
| R26976 | O-Ring | 1 | ||||
| 6 | RE521496 | Seal Kit | 1 | (SUB FOR RE68318) | ||
| 7 | RE521502 | Pump Kit | 1 | (16 TOOTH GEAR), (MARKED R503501 ) (SUB FOR RE509598 OR RE532596) | ||
| SE501596 | Water Pump Reman | 1 | (REMAN FOR RE521502) | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| RE521503 | Pump Kit | 1 | (15 TOOTH GEAR), (MARKED R503501 ) (SUB FOR RE509599 OR RE532595) | |||
| SE501595 | Water Pump Reman | 1 | (REMAN FOR RE521503) | |||
| 8 | 19H3411 | Screw | 2 | 3/8" X 1-1/8" | ||
| 9 | 19H1897 | Cap Screw | 1 | 5/16" X 3-3/4" | ||
| 10 | 24H1136 | Washer | 1 | 11/32" X 11/16" X 0.065" | ||
| 11 | R119383 | Gasket | 1 | |||
| 12 | AH89557 | Clip | 1 | |||
| 13 | 24M7096 | Washer | 3 | 10.500 X 18 X 1.600 mm | ||
| 14 | 19H3445 | Cap Screw | 3 | 3/8" X 3-3/4" |
3901, 3917 THERMOSTAT HOUSING( КОРПУС ТЕРМОСТАТА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 15H690 | Pipe Plug | 1 | 3/4" | ||
| 15H690 | Pipe Plug | 1 | 3/4" | |||
| 2 | RE523801 | Housing | 1 | (SUB FOR RE523801) | ||
| 3 | R136063 | Seal | 1 | |||
| 4 | R502517 | Plug | 1 | |||
| 5 | R133998 | Screw | 2 | |||
| 6 | 19H3772 | Screw | 1 | 3/8" X 1-3/4" | ||
| 7 | RE57836 | Pipe Plug | 1 | |||
| 8 | RE46684 | Fitting Plug | 1 | |||
| 9 | 51M7041 | O-Ring | 1 | 11.300 X 2.200 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 10 | R107768 | Drain Plug | 1 | |||
| 11 | RE508648 | Tube | 1 | |||
| 12 | R504810 | O-Ring | 2 |
2102 THERMOSTAT COVER( КРЫШКУ ТЕРМОСТАТА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H3683 | Screw | 3 | 3/8" X 1-1/2" | ||
| 2 | R86007 | Cover | 1 | |||
| 3 | R124607 | Gasket | 1 |
6601, 6604 TEMPERATURE SWITCH( ПЕРЕКЛЮЧАТЕЛЬ ТЕМПЕРАТУРЫ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | H163652 | Fitting | 1 | |||
| 2 | R77673 | O-Ring | 1 | |||
| 3 | AH156145 | Sensor | 1 |

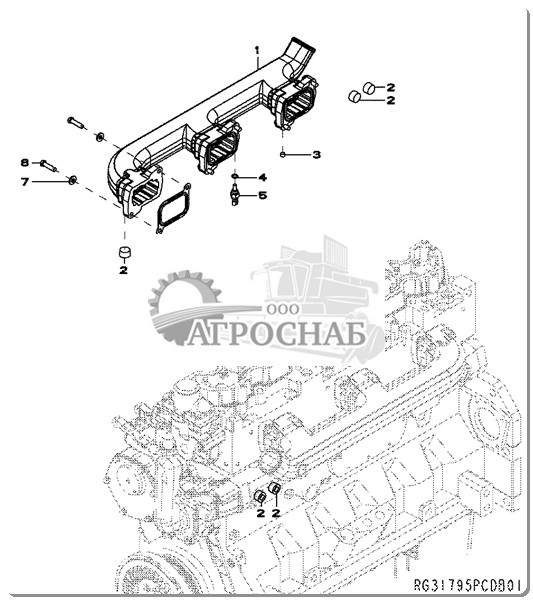

1733, 1744 AIR INTAKE( ВОЗДУХОЗАБОРНИК )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R503926 | Intake Manifold | 1 | |||
| 2 | 15H690 | Pipe Plug | 3 | 3/4" | ||
| 15H690 | Pipe Plug | 1 | 3/4" | |||
| 3 | RE71255 | Pipe Plug | 1 | |||
| 4 | 51M7041 | O-Ring | 1 | 11.300 X 2.200 mm | ||
| 5 | RE61812 | Sensor | 1 | (LOW TEMPERATURE) | ||
| 6 | R130573 | Gasket | 3 | |||
| 7 | 24H1682 | Washer | 6 | 13/32" X 7/8" X 0.120" | ||
| 8 | 19H1651 | Cap Screw | 6 | 3/8" X 1-1/2" (ORDER 19H2633) | ||
| 19H2633 | Cap Screw | 6 | 3/8" X 1-1/2" |
2818, 2830 EXHAUST MANIFOLD( ВЫПУСКНОЙ КОЛЛЕКТОР)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19H3267 | Cap Screw | 4 | 3/8" X 1-5/8" (LOWER) | ||
| 2 | R127425 | Exhaust Manifold | 1 | (REAR) | ||
| 3 | 19H3031 | Cap Screw | 4 | 3/8" X 2-1/2" (UPPER) | ||
| 4 | R63845 | Washer | 8 | |||
| 5 | R127426 | Exhaust Manifold | 1 | (FRONT) | ||
| 6 | R521438 | Gasket | 2 | (ORDER RE62777 ) (SUB FOR R83021) (OUTER) | ||
| RE62777 | Gasket | 2 | ||||
| 7 | R521437 | Gasket | 2 | (ORDER RE62776 ) (SUB FOR R83020) (INNER) | ||
| RE62776 | Gasket | 2 | ||||
| 8 | R122595 | Ring | 2 |
TURBOCHARGER AND OIL LINES(ТУРБОНАГНЕТАТЕЛЬ И МАСЛОПРОВОДЫ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | T11180 | Elbow Fitting | 1 | ||||
| 2 | SE500411 | Turbocharger Reman | 1 | - | 217607 | ||
| RE516849 | Turbocharger Reman | 1 | 217608 | - | |||
| SE502172 | Turbocharger Reman | 1 | 233486 | - | |||
| 3 | R54500 | Screw | 4 | ||||
| 4 | 24H1305 | Washer | 4 | 13/32" X 13/16" X 0.065" | |||
| 5 | R92097 | Gasket | 1 | ||||
| R92097 | Gasket | 1 | - | 233485 | |||
| R89879 | Gasket | 1 | 233486 | - | |||
| 6 | R105346 | Gasket | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 7 | RE503537 | Line | 1 | ||||
| 8 | R122618 | Screw | 2 | ||||
| 9 | TY22467 | Clamp | 2 | ||||
| 10 | R502036 | Hose | 1 | ||||
| 11 | R72853 | Clamp | 1 | ||||
| 12 | R126812 | Elbow Fitting | 1 | ||||
| 13 | 19H1916 | Cap Screw | 2 | 5/8" X 1" | |||
| 14 | 24H1658 | Washer | 2 | 21/32" X 1" X 0.060" | |||
| 15 | 19H2038 | Cap Screw | 1 | 3/8" X 1/2" | |||
| 16 | 24H1305 | Washer | 1 | 13/32" X 13/16" X 0.065" | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 17 | RE506232 | Heat Shield | 1 | ||||
| 18 | 19H2731 | Cap Screw | 1 | 7/16" X 1-3/8" | |||
| 19 | 24H1886 | Washer | 1 | 15/32" X 1-1/8" X 0.180" | |||
| 20 | R504765 | Bracket | 1 | ||||
| 21 | 19H1936 | Cap Screw | 2 | 3/8" X 3/4" | |||
| 22 | T28862 | Clamp | 2 | ||||
| 23 | RE508391 | Oil Line | 1 | (SUB FOR RE70709, THIS APPLICATION) | |||
| 24 | RE57561 | Adapter Fitting | 1 |
9902 ENGINE GASKET KIT( НАБОР ПРОКЛАДОК ДВИГАТЕЛЯ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | RE62777 | Gasket | 2 | (OUTER) | |||
| 2 | RE62776 | Gasket | 2 | (INNER) | |||
| 3 | R92097 | Gasket | 1 | ||||
| R89879 | Gasket | 1 | |||||
| 4 | R105346 | Gasket | 1 | ||||
| 5 | R130573 | Gasket | 3 | ||||
| 6 | R72328 | O-Ring | 1 | ||||
| 7 | R502598 | Seal | 1 | (COVER) | |||
| R502719 | Seal | 1 | (CARRIER) | ||||
| 8 | R504093 | Seal | 4 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 9 | R501640 | Shield | 6 | ||||
| 10 | RE55475 | Engine Cylinder Head Gasket | 1 | ||||
| 11 | R505570 | O-Ring | 6 | ||||
| 12 | R131051 | Washer | 6 | ||||
| R503578 | O-Ring | 6 | |||||
| 13 | R136063 | Seal | 1 | ||||
| 14 | R504810 | O-Ring | 1 | ||||
| 15 | R119383 | Gasket | 1 | ||||
| 16 | R515457 | O-Ring | 1 | ||||
| 17 | RE521059 | Gasket Kit | 1 | (INCLUDES (8) R51936, R E516171 AND (8) R63551) | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 18 | R132396 | Gasket | 1 | ||||
| 19 | R47153 | O-Ring | 4 | - | XXXXXX | ||
| 20 | R50424 | Gasket | 1 | - | XXXXXX | ||
| 21 | U17409 | O-Ring | 1 | ||||
| 22 | AR58952 | Gasket | 1 | ||||
| 23 | U13639 | O-Ring | 1 | ||||
| 24 | R119384 | Gasket | 1 | ||||
| 25 | R502011 | Gasket | 1 | ||||
| 26 | R109625 | Gasket | 1 | - | XXXXXX | ||
| 27 | RE504822 | Gasket | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 28 | R100569 | Gasket | 1 | ||||
| 29 | R26058 | Gasket | 1 | ||||
| 30 | RE521058 | Gasket Kit | 1 | (ENGINE REBUILD) | |||
| .. | R51936 | Sealing Washer | 8 | ||||
| .. | R63551 | Sealing Washer | 8 |
2310 FAN DRIVE( ПРИВОД ВЕНТИЛЯТОРА )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE519137 | Pillow Block | 1 | (ORDER RE519739 AND R504757) | ||
| 2 | 19H2473 | Cap Screw | 1 | 1/2" X 1-3/4" | ||
| 3 | T20217 | Washer | 1 | |||
| 4 | R504757 | Pulley | 1 | |||
| 5 | RE20768 | Seal | 1 | |||
| 6 | R62191 | Snap Ring | 1 | (RED) | ||
| 7 | R62192 | Snap Ring | 1 | (GREEN) | ||
| 8 | R62193 | Snap Ring | 1 | (BLUE) | ||
| 9 | R62194 | Snap Ring | 1 | (WHITE) | ||
| 10 | R63987 | Shaft | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | JD10329 | Ball Bearing | 2 | |||
| 12 | R116466 | Plug | 1 | |||
| 13 | 19H3711 | Screw | 1 | 3/8" X 5-1/2" | ||
| 14 | R135737 | Screw | 1 | |||
| 15 | R516668 | Plate | 1 | (ORDER RE519739) | ||
| RE519739 | Housing | 1 | ||||
| 16 | 19H3772 | Screw | 1 | 3/8" X 1-3/4" | ||
| 17 | R502517 | Plug | 1 | |||
| 18 | R112273 | Screw | 1 | |||
| 19 | R135737 | Screw | 3 |
7403, 7419 AIR CONDITIONING MOUNTING( КОНДИЦИОНЕР МОНТАЖ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R99590 | Cover | 1 | |||
| 2 | R128893 | Bolt | 1 | |||
| 3 | RE505265 | Idler | 1 | |||
| 4 | 19H2676 | Cap Screw | 2 | 3/8" X 1" | ||
| 5 | R128892 | Spacer | 1 | |||
| 6 | R521092 | Support | 1 | |||
| 7 | 19H3771 | Screw | 2 | 3/8" X 1" | ||
| 8 | 24H1305 | Washer | 2 | 13/32" X 13/16" X 0.065" | ||
| 9 | R134525 | Support | 1 | |||
| 10 | 19H3772 | Screw | 2 | 3/8" X 1-3/4" |
1616, 16DF FUEL INJECTION PUMP( ДФ ТОПЛИВНЫЙ НАСОС ВЫСОКОГО ДАВЛЕНИЯ )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | 19H3218 | Cap Screw | 6 | 3/8" X 1-3/4" | |||
| 2 | R63845 | Washer | 6 | ||||
| 3 | R502602 | Clamp | 6 | ||||
| 4 | RE524368 | Injection Nozzle | 6 | - | 217607 | ||
| SE501940 | Injection Nozzle Reman | 6 | (REMAN FOR RE524368) | ||||
| RE524361 | Injection Nozzle | 6 | 217608 | - | 233485 | ||

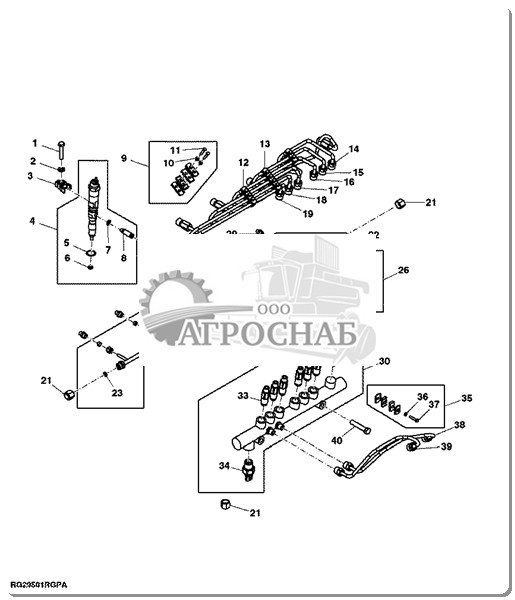

| SE501936 | Injection Nozzle Reman | 6 | (REMAN FOR RE524361) | ||||
| RE524360 | Nozzle Kit | 6 | 233486 | - | |||
| SE501935 | Injection Nozzle Reman | 6 | (REMAN FOR RE524360) | ||||
| 5 | R503578 | O-Ring | 6 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 6 | R131051 | Washer | 6 | ||||
| 7 | R135526 | O-Ring | 6 | ||||
| 8 | RE509416 | Fitting | 6 | ||||
| 9 | RE502655 | Clamp | 2 | LINE 3 | |||
| 10 | 24M7027 | Washer | 3 | 5.300 X 10 X 1 mm | |||
| 11 | 19M7502 | Cap Screw | 2 | M5 X 25 | |||
| 12 | RE509012 | Clamp | 1 | (INCLUDES (3) 24M7027 AND (3) 19M7502) LINE 4 | |||
| 13 | RE509013 | Clamp | 1 | (INCLUDES (4) 24M7027 AND (4) 19M7502) LINE 5 | |||
| 14 | RE504013 | Fuel Line | 1 | LINE 1 | |||
| 15 | RE504014 | Fuel Line | 1 | LINE 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 16 | RE504015 | Fuel Line | 1 | LINE 3 | |||
| 17 | RE504016 | Fuel Line | 1 | LINE 4 | |||
| 18 | RE504017 | Fuel Line | 1 | LINE 5 | |||
| 19 | RE515524 | Fuel Line | 1 | LINE 6 | |||
| 20 | RE502650 | Fitting | 6 | ||||
| 21 | 38H1415 | Fitting | 5 | ||||
| 22 | RE506982 | Fuel Line | 1 | - | 232462 | ||
| RE521476 | Manifold | 1 | 232463 | - | |||
| 23 | R63548 | O-Ring | 6 | ||||
| 24 | R51937 | Tube Nut | 8 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 25 | R505620 | Washer | 6 | ||||
| 26 | RE507003 | Line | 1 | LEAK OFF TO RAIL | |||
| 27 | R51937 | Tube Nut | 2 | ||||
| 28 | R505620 | Washer | 2 | ||||
| 29 | RE506624 | Adapter Fitting | 1 | ||||
| 30 | RE521433 | Rail | 1 | ||||
| 31 | RE516335 | Pressure Relief Valve | 2 | (MARKED 0161) | |||
| 32 | R515454 | Shim | 1 | ||||
| 33 | RE515636 | Restrictor | 6 | (MARKED 0220) | |||
| 34 | RE520930 | Sensor | 1 | (MARKED 6140) | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 35 | RE502654 | Clamp | 1 | (INCLUDES 24M7027 AND 19M7502) LINE 2 | |||
| 36 | 24M7027 | Washer | 1 | 5.300 X 10 X 1 mm | |||
| 37 | 19M7502 | Cap Screw | 1 | M5 X 25 | |||
| 38 | RE505154 | Fuel Line | 1 | ||||
| 39 | RE505155 | Fuel Line | 1 | ||||
| 40 | 19H2699 | Cap Screw | 2 | 7/16" X 2-1/4" |

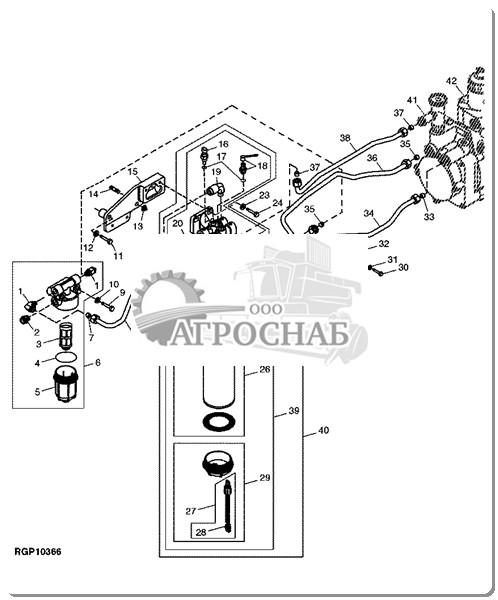

3501, 3510 FUEL FILTER AND LINES( ТОПЛИВНЫЙ ФИЛЬТР И ЛИНИИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | RE507027 | Elbow Fitting | 2 | - | 232462 | ||
| 2 | RE503605 | Adapter Fitting | 1 | - | 232462 | ||
| 3 | R502778 | Filter Element | 1 | - | 232462 | ||
| 4 | R101042 | O-Ring | 1 | - | 232462 | ||
| 5 | R502777 | Bowl | 1 | - | 232462 | ||
| 6 | RE507011 | Fuel Filter | 1 | - | 232462 | ||
| 7 | R63551 | Sealing Washer | 2 | - | 232462 | ||
| 8 | RE515890 | Hydraulic Hose | 1 | - | 232462 | ||
| 9 | 19H1907 | Cap Screw | 2 | - | 232462 | ||
| 10 | 24H1136 | Washer | 2 | - | 232462 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 11 | 19H2678 | Cap Screw | 1 | - | 232462 | ||
| 12 | 24H1325 | Washer | 1 | - | 232462 | ||
| 13 | 14H1059 | Nut | 1 | - | 232462 | ||
| 14 | R504516 | Stud | 1 | - | 232462 | ||
| 15 | R504279 | Bracket | 1 | - | 232462 | ||
| 16 | RE48419 | Sensor | 1 | - | 232462 | ||
| 17 | 51M7041 | O-Ring | 2 | - | 232462 | ||
| 18 | RE190805 | Diagnostic Coupling | 1 | - | 232462 | ||
| 19 | RE507029 | Valve | 1 | - | 232462 | ||
| 20 | RE507027 | Elbow Fitting | 1 | - | 232462 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 21 | RE507028 | Check Valve | 1 | - | 232462 | ||
| 22 | RE516346 | Filter Head | 1 | - | 232462 | ||
| 23 | 24H1305 | Washer | 2 | - | 232462 | ||
| 24 | 19H3239 | Cap Screw | 2 | - | 232462 | ||
| 25 | R501388 | Packing | 1 | - | 232462 | ||
| 26 | RE519608 | Fuel Filter | 1 | - | 232462 | ||
| 27 | RE503590 | Moisture Sensor | 1 | - | 232462 | ||
| 28 | 57M7254 | Elec. Connector Housing | 1 | - | 232462 | ||
| 29 | RE507187 | Filter | 1 | - | 232462 | ||
| 30 | 19H1791 | Cap Screw | 2 | - | 232462 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 31 | 24H1286 | Washer | 2 | - | 232462 | ||
| 32 | RE509668 | Clamp | 1 | - | 232462 | ||
| 33 | R63551 | Sealing Washer | 2 | - | 232462 | ||
| 34 | RE506971 | Fuel Line | 1 | - | 232462 | ||
| 35 | R63551 | Sealing Washer | 2 | - | 232462 | ||
| 36 | RE506970 | Fuel Line | 1 | - | 232462 | ||
| 37 | R63551 | Sealing Washer | 2 | - | 232462 | ||
| 38 | RE509275 | Fuel Line | 1 | - | 232462 | ||
| 39 | RE522372 | Fuel Filter | 1 | - | 232462 | ||
| 40 | RE522640 | Filter Head | 1 | - | 232462 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 41 | ...... | Check Valve | 1 | - | 232462 | ||
| 42 | ...... | Fuel Injection Pump | 1 | - | 232462 | ||
| .. | RE52242 | Drain Plug | 1 | - | 232462 |

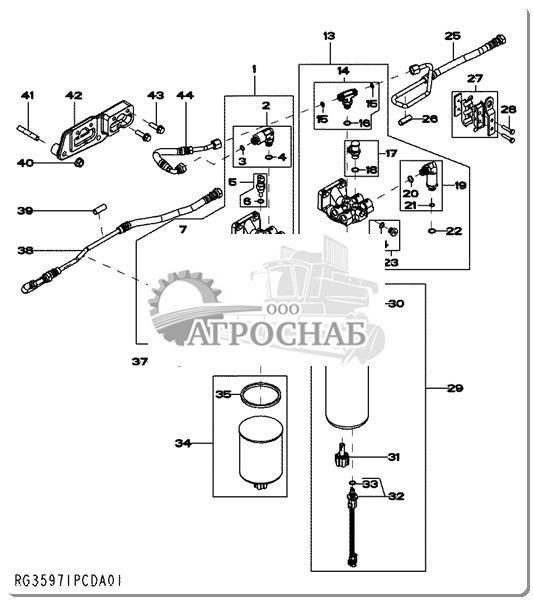

3510 FUEL FILTER AND LINES( ТОПЛИВНЫЙ ФИЛЬТР И ЛИНИИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | RE520969 | Filter Head | 1 | 232463 | - | ||
| 2 | RE520971 | Control Valve | 1 | 232463 | - | ||
| 3 | R63548 | O-Ring | 1 | 232463 | - | ||
| 4 | 51M7096 | O-Ring | 1 | 232463 | - | ||
| 5 | RE48419 | Sensor | 1 | 232463 | - | ||
| 6 | 51M7041 | O-Ring | 1 | 232463 | - | ||
| 7 | RE522518 | Fitting | 1 | 232463 | - | ||
| 8 | R63548 | O-Ring | 1 | 232463 | - | ||
| 9 | 51M7096 | O-Ring | 1 | 232463 | - | ||
| 10 | RE522145 | Adapter Fitting | 1 | 232463 | - | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 11 | R63548 | O-Ring | 1 | 232463 | - | ||
| 12 | 51M7096 | O-Ring | 1 | 232463 | - | ||
| 13 | RE520967 | Filter Head | 1 | 232463 | - | ||
| 14 | RE522143 | Adapter Fitting | 1 | 232463 | - | ||
| 15 | R63548 | O-Ring | 2 | 232463 | - | ||
| 16 | 51M7096 | O-Ring | 1 | 232463 | - | ||
| 17 | RE523578 | Diagnostic Coupling | 1 | 232463 | - | ||
| 18 | 51M7096 | O-Ring | 1 | 232463 | - | ||
| 19 | RE520968 | Check Valve | 1 | 232463 | - | ||
| 20 | 51M7096 | O-Ring | 1 | 232463 | - | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 21 | R63548 | O-Ring | 1 | 232463 | - | ||
| 22 | 51M7096 | O-Ring | 1 | 232463 | - | ||
| 23 | RE522144 | Drain Plug | 1 | 232463 | - | ||
| 24 | 51M7095 | O-Ring | 1 | 232463 | - | ||
| 25 | RE520972 | Fuel Line | 1 | 232463 | - | ||
| 26 | R518563 | Hose Guard | 1 | 232463 | - | ||
| 27 | RE509668 | Clamp | 1 | 232463 | - | ||
| 28 | 19H1791 | Cap Screw | 2 | 232463 | - | ||
| 29 | RE531703 | Fuel Filter | 1 | 232463 | - | ||
| 30 | R519483 | Packing | 1 | 232463 | - | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 31 | RE522686 | Drain Valve | 1 | 232463 | - | ||
| 32 | RE522685 | Sensor | 1 | 232463 | - | ||
| 33 | 51M7095 | O-Ring | 1 | 232463 | - | ||
| 34 | RE522688 | Fuel Filter | 1 | 232463 | - | ||
| 35 | R519483 | Packing | 1 | 232463 | - | ||
| 36 | R518563 | Hose Guard | 1 | 232463 | - | ||
| 37 | RE520981 | Fuel Line | 1 | 232463 | - | ||
| 38 | RE520975 | Fuel Line | 1 | 232463 | - | ||
| 39 | R518563 | Hose Guard | 1 | 232463 | - | ||
| 40 | 14H1059 | Nut | 2 | 232463 | - | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 41 | R504516 | Stud | 2 | 232463 | - | ||
| 42 | R518524 | Bracket | 1 | 232463 | - | ||
| 43 | 19H3693 | Screw | 4 | 232463 | - | ||
| 44 | RE521473 | Fuel Line | 1 | 232463 | - |
6205, 6228 ALTERNATOR MOUNTING( КРЕПЛЕНИЕ ГЕНЕРАТОРА )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R122474 | Screw | 1 | |||
| 2 | R134153 | Adjusting Strap | 1 | |||
| 3 | 19H3239 | Cap Screw | 2 | 3/8" X 1-1/4" | ||
| 4 | R135423 | Bushing | 1 | |||
| 5 | R500607 | Strap | 1 | |||
| 6 | R134010 | Bushing | 1 | |||
| 7 | 19M7810 | Screw | 1 | M10 X 80 | ||
| 8 | RE518097 | Belt Tensioner | 1 | |||
| 9 | R112268 | Screw | 1 | |||
| 10 | R104861 | Screw | 5 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R50393 | Cover | 1 | |||
| 12 | R502011 | Gasket | 1 |

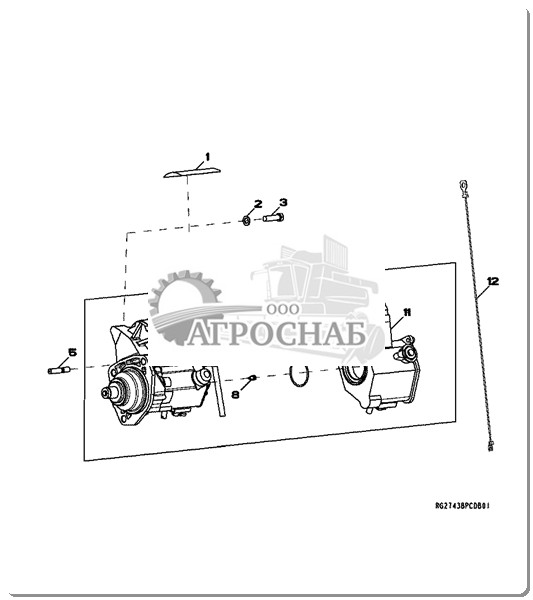

3007, 3013 STARTING MOTOR( НАЧИНАЯ МОТОР)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | T146102 | Label | 1 | (ENGLISH) | ||
| 2 | 24H1303 | Washer | 2 | 13/32" X 11/16" X 0.065" | ||
| 3 | 19H3219 | Cap Screw | 2 | 3/8" X 1-3/8" | ||
| 4 | E55662 | Flange Nut | 1 | |||
| 5 | R515224 | Stud | 1 | |||
| 6 | RE69704 | Starter Motor | 1 | |||
| RE70957 | Motor | 1 | ||||
| SE501403 | Starter Motor Reman | 1 | (REMAN FOR RE70957) | |||
| 7 | R135509 | O-Ring | 1 | |||
| 8 | RE71256 | Screw With Washer | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | R135660 | Cover | 1 | |||
| 10 | R135510 | O-Ring | 1 | |||
| 11 | RE70486 | Switch | 1 | |||
| 12 | AH155483 | Wiring Lead | 1 |

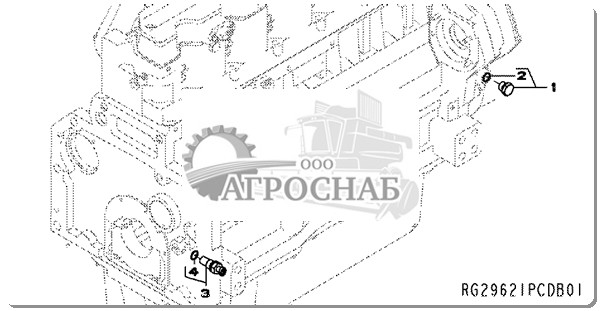

4401 MAGNETIC PICK-UP( МАГНИТНЫЙ ДАТЧИК)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE517370 | Fitting | 1 | |||
| 2 | 51M7044 | O-Ring | 1 | 17.300 X 2.200 mm | ||
| 3 | RE519144 | Sensor | 1 | (SUB FOR RE508195 ) (INCLUDES 51M7044) | ||
| 4 | 51M7044 | O-Ring | 1 | 17.300 X 2.200 mm |
4021 ENGINE OIL DIPSTICK TUBE( МОТОРНОЕ МАСЛО ЩУП ТРУБКА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE500218 | Dipstick | 1 | |||
| 2 | R503983 | Dipstick Tube | 1 | |||
| 3 | T35390 | Plug | 1 |
2201 THERMOSTAT( Термостат)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE69581 | Thermostat | 2 |
9808, 9826 LIFT STRAPS( ЛИФТ РЕМНИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | R61497 | Strap | 2 | ||||
| 2 | 19H1756 | Cap Screw | 2 | 5/8" X 1-1/2" | |||
| 3 | RE522834 | Valve | 1 | ||||
| 4 | R519759 | O-Ring | 1 | ||||
| 5 | RE504156 | Oil Line | 1 | ||||
| 6 | R67264 | Packing | 2 | ||||
| 7 | 14H1090 | Nut | 3 | 3/8" | |||
| 8 | 24M7239 | Washer | 3 | 10.700 X 21 X 2.500 mm | |||
| 9 | RE503059 | Adapter Fitting | 1 | ||||
| 10 | R76822 | Fitting | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 11 | 24H1652 | Washer | 1 | 13/32" X 11/16" X 7/64" | |||
| 12 | 19H3124 | Screw | 1 | 3/8" X 1-1/2" | |||
| 13 | RE508670 | Check Valve | 1 | - | 232462 | ||
| RE520978 | Check Valve | 1 | 232463 | - | |||
| 14 | 51M7095 | O-Ring | 2 | 11.300 X 2.200 mm | |||
| 15 | RE503058 | Adapter Fitting | 2 | - | 232462 | ||
| RE522616 | Fitting | 2 | 232463 | - | |||
| 16 | 38H5002 | Adapter Fitting | 1 | ||||
| 17 | RE518423 | Fuel Injection Pump | 1 | - | 232462 | ||
| RE521422 | Fuel Injection Pump | 1 | 232463 | - | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| SE501918 | Fuel Injection Pump Reman | 1 | (REMAN FOR RE518423) | ||||
| SE501920 | Fuel Injection Pump Reman | 1 | (REMAN FOR RE521422) | ||||
| 18 | RE515638 | Hand Primer | 1 | ||||
| 19 | R515456 | Washer | 1 | ||||
| 20 | R515457 | O-Ring | 1 | ||||
| 21 | 19H2699 | Cap Screw | 2 | 7/16" X 2-1/4" | |||
| 22 | RE508773 | Engine Controller | 1 | - | 217748 | ||
| RE522515 | Engine Controller | 1 | 217749 | - |
